Handheld Angle Measurer for Press Brake | 0.01° Precision Sheet Metal Bending Angle Gauge

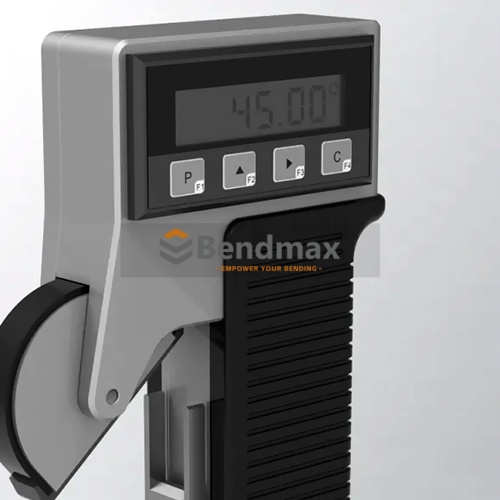

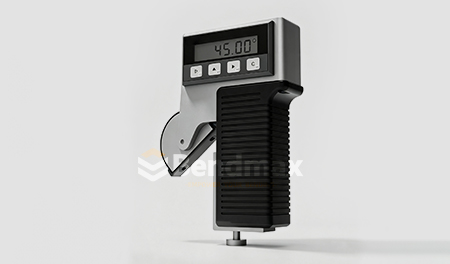

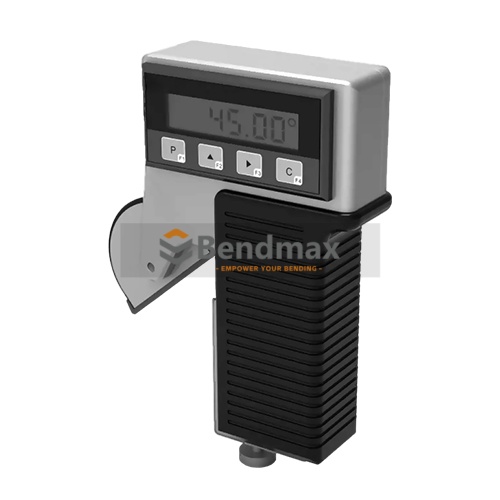

The Handheld Angle Measurer is a compact and portable angle measurement tool for press brake and sheet metal bending applications, designed for quick and accurate checking of bending angles. With a measurement range of 50° to 180° and measurement accuracy of up to 0.01°, it provides a convenient solution for first-piece inspection, process control, and final quality checking.
Система оснастки :
Bendmax Press Brake AccessoriesСтиль инструментария :
Handheld Angle SensorHandheld Angle Measurer
- Precision Sheet Metal Bending Angle Gauge
▶ Click to press brake tooling Accessories Catalog

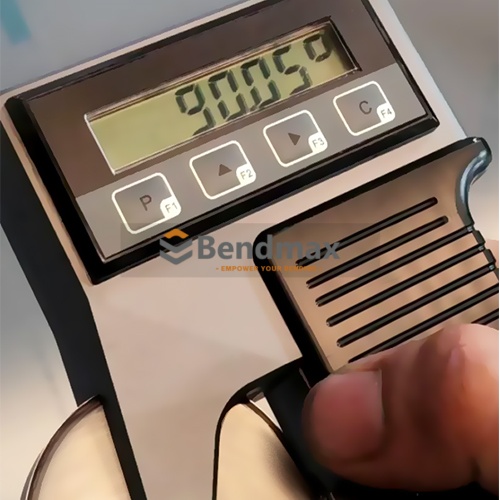

Designed for easy handheld operation, this digital angle measuring device allows operators to quickly verify the actual angle of bent sheet metal without relying solely on machine settings or visual inspection. Its high repeatability of ±0.01° helps improve bending consistency and quality control during production.
Key Features
• High-Precision Measurement: Accuracy up to 0.01° for precise bend angle inspection.
• Wide Measurement Range: Measures angles from 50° to 180°, suitable for a variety of sheet metal bending applications.
• Excellent Repeatability: Maximum repeatability of ±0.01° for consistent measurement results.

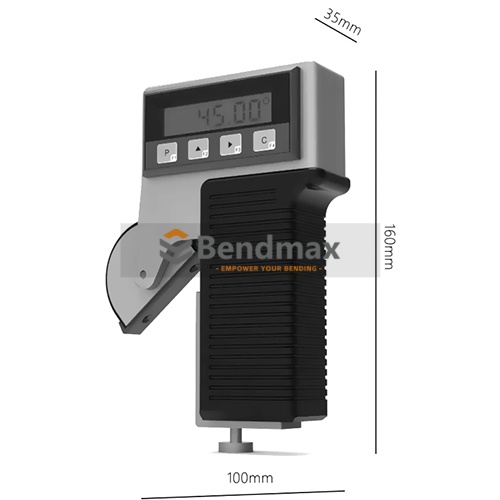

• Portable Handheld Design: Compact 100 × 160 × 35 mm housing with a weight of only 600 g.
• Easy Battery Operation: Powered by 2 × AA batteries, suitable for flexible workshop use.
• Automatic Power-Off: Automatically switches off after 5 minutes to help conserve battery power.
• Wide Operating Temperature: Designed for reliable operation from -20°C to 70°C.
• Low Power Consumption: Maximum power consumption of only 400 μA.
